Home > Steering Systems >
V-Drive Steering Systems
>
Rudder Stuffing Boxes
Sort By:
Page of 1
Single Seal Rudder Stuffing Box Brass 1"
Rudder Stuffing Box Single Seal Brass 1"
Our Price: $82.50

This rudder stuffing box uses a neoprene seal. Furnished in 1" rudder shaft size. Made from brass. Manufactured by Glenwood Marine.

Base measures 3-1/4" X 3 1/4".
Holes center to center are 2-5/16"

...
Single Seal Rudder Stuffing Box Chrome Brass 1"
Rudder Stuffing Box Single Seal Chrome Brass 1"
Our Price: $104.50

This rudder stuffing box uses a neoprene seal. Furnished in 1" rudder shaft size. Made from brass then Chrome plated. Manufactured by Glenwood Marine.

Base measures 3-1/4" X 3 1/4".
Holes center to center are 2-5/16"

...
Single Seal Rudder Stuffing Box Chrome Brass 1-1/8"
Rudder Stuffing Box Single Seal Chrome Brass 1-1/8"
Our Price: $105.50

This rudder stuffing box uses a neoprene seal. Furnished in 1-1/8" rudder shaft size. Made from brass then Chrome plated. Manufactured by Glenwood Marine.

Base measures 3-1/4" X 3 1/4".
Holes center to center are 2-5/16"

...
Rudder Stuffing Box Double Seal Brass 1"
Rudder Stuffing Box Double Seal Brass 1"
Our Price: $125.50

Competition rudder stuffing box uses a double seal on top and an "O" ring on the bottom, giving greater rudder shaft stability and assuring a positive leak-proof unit.
These units are taller than single seal boxes so make sure you have the clearance.

Made from brass.
For use with 1" rudder shafts.
Manufactured by Glenwood Marine
Height from base to top: 3"

...
Rudder Stuffing Box Double Seal Brass 1 1/8"
Rudder Stuffing Box Double Seal Brass 1 1/8"
Our Price: $126.50

Competition rudder stuffing box uses a double seal on top and an "O" ring on the bottom, giving greater rudder shaft stability and assuring a positive leak-proof unit.

Made from brass.
For 1 1/8" rudder shafts.
Manufactured by Glenwood Marine
Distance from base to top: 3"

...
Rudder Stuffing Box Double Seal Chrome Brass 1"
Rudder Stuffing Box Double Seal Chrome Brass 1"
Our Price: $140.50

Competition rudder stuffing box uses a double seal on top and an "O" ring on the bottom, giving greater rudder shaft stability and assuring a postive leak-proof unit.

Made from brass then Chrome plated.
For use with 1" rudder shafts.
Manufactured by Glenwood Marine
Height from base to top: 3"

...
Rudder Stuffing Box Double Seal Chrome Brass 1 1/8"
Rudder Stuffing Box Double Seal Chrome Brass 1 1/8"
Our Price: $141.50

Competition rudder stuffing box uses a double seal on top and an "O" ring on the bottom, giving greater rudder shaft stability and assuring a positive leak-proof unit.

Made from brass then Chrome plated.
For 1 1/8" rudder shafts.
Manufactured by Glenwood Marine
Distance from base to top: 3"

...

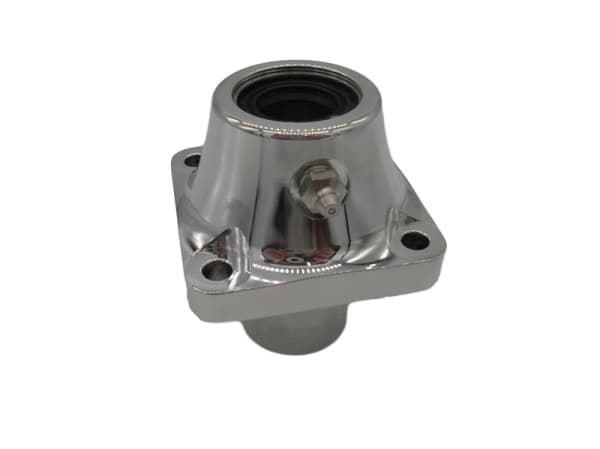

Billet Aluminum Rudder Stuffing Box With Bearing 1"
1" Billet Aluminum Rudder Stuffing Box With Bearing
Discount Price $195.00

Made from 6061 T6 aluminum with a machined finish. Designed to fit 1" diameter rudder shafts.
The stuffing box has a standard 3-5/16" square mounting flange. It is a direct replacement for your older style stuffing box. Mounting holes are not drilled as every hull has a different variety of hole sizes and patterns. All you have to do is transfer the existing hole locations in you hull to the rudder box and drill the size you need.

Fits all standard 1-1/2" diameter thru hull holes. The section that goes thru the bottom of the hull is 1-3/4" long to accommodate any hull thickness. Cut the length to fit.

Overall height of the stuffing box inside the boat is 2-1/8"

From the top of the stuffing box to the bottom features a snap ring for safety to help retain the 1" sealed bearing that is bored a few thousands larger than your rudder shaft for easy installation.

Next is an ample sized grease reservoir which is filled by the grease zerk located on the outside of the rudder box housing

A double lip grease cup seal is lightly pressed in as a second barrier to keep water out. The first water barrier is a 1/8" diameter o-ring that is below the grease cup seal.

Recommended Sea Going Epoxy putty for installation

...
Billet Aluminum Rudder Stuffing Box With Bearing 1-1/8"
1-1/8" Billet Aluminum Rudder Stuffing Box With Bearing
Discount Price $195.00

Made from 6061 T6 aluminum with a machined finish. Designed to fit 1-1/8" diameter rudder shafts.
The stuffing box has a standard 3-5/16" square mounting flange. It is a direct replacement for your older style stuffing box. Mounting holes are not drilled as every hull has a different variety of hole sizes and patterns. All you have to do is transfer the existing hole locations in you hull to the rudder box and drill the size you need.

Fits all standard 1-1/2" diameter thru hull holes. The section that goes thru the bottom of the hull is 1-3/4" long to accommodate any hull thickness. Cut the length to fit.

Overall height of the stuffing box inside the boat is 2-5/16"

From the top of the stuffing box to the bottom features a snap ring for safety to help retain the 1-1/8" sealed bearing that is bored a few thousands larger than your rudder shaft for easy installation.

Next is an ample sized grease reservoir which is filled by the grease zerk located on the outside of the rudder box housing

A double lip grease cup seal is lightly pressed in as a second barrier to keep water out. The first water barrier is a 1/8" diameter o-ring that is below the grease cup seal.

Recommended Sea Going Epoxy putty for installation

...
Billet Aluminum Rudder Stuffing Box Round Base With Bearing 1"
1" Billet Aluminum Rudder Stuffing Box With Bearing Round Flange
Discount Price $195.00

Made from 6061 T6 aluminum with a machined finish. Designed to fit 1" diameter rudder shafts.
The stuffing box has a standard 4-1/16" round mounting flange. It is a direct replacement for your older style stuffing box. Mounting holes are not drilled as every hull has a different variety of hole sizes and patterns. All you have to do is transfer the existing hole locations in you hull to the rudder box and drill the size you need.

Fits all standard 1-1/2" diameter thru hull holes. The section that goes thru the bottom of the hull is 1-3/4" long to accommodate any hull thickness. Cut the length to fit.

Overall height of the stuffing box inside the boat is 2-1/8"

From the top of the stuffing box to the bottom features a snap ring for safety to help retain the 1" sealed bearing that is bored a few thousands larger than your rudder shaft for easy installation.

Next is an ample sized grease reservoir which is filled by the grease zerk located on the outside of the rudder box housing

A double lip grease cup seal is lightly pressed in as a second barrier to keep water out. The first water barrier is a 1/8" diameter o-ring that is below the grease cup seal.

Recommended Sea Going Epoxy putty for installation

...
