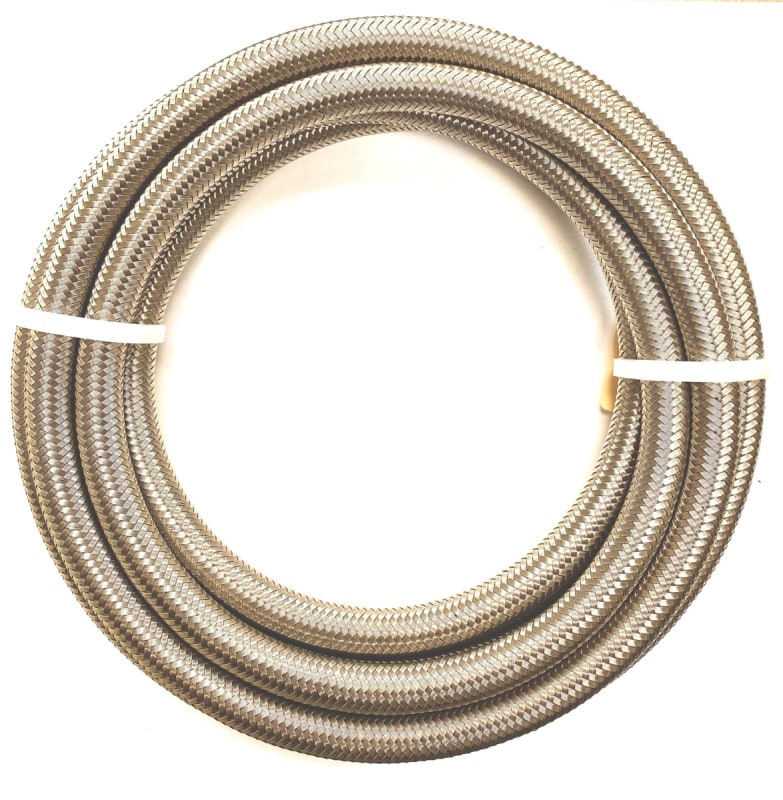

FPS Series 3000 Race Hose is manufactured to the highest aerospace quality standard for years of trouble free service even in the most demanding circumstances.
- 500 - 1500 psi Working pressure covers most of the oil, water and fuel systems you may encounter
- Two layers of rugged woven stainless steel
- inner layer resist collapse and the outer layer protects against abrasion
- Unique CPFE inner liner is compatible with all hydrocarbon and alcohol based fuels, along with synthetic and natural base lubricants
- Operating range of -40 degrees to +300 degrees F
- Designed to be used with FPS Series 2000 and 3000 series hose ends
Hose Size: -10 AN
PTFE Lined: No
Hose Length (ft):1.00
Outer Material: Braided stainless steel
Hose Color: Natural
Hose Material: Synthetic rubber
Hose Inside Diameter (in): 9/16 in.
Hose Outside Diameter: 0.805 in.
Minimum Recommended Temperature: -40 degrees F
Maximum Recommended Temperature: 300 degrees F
Maximum Operating Pressure (psi): 1,250 psi
Quantity: Sold per foot
![]()
