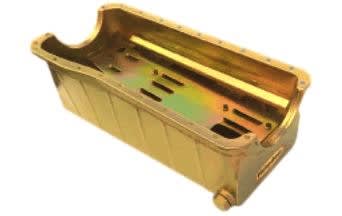

Revised design for marine applications from recreational to competition use when engine is installed in hull with flywheel aft. Now features double tray door assemblies, full length windage tray and scrapper for optimum oil control. Good oil control is required on the 429-460 because of the high load placed on the engine by the jet drive. The resulting high oil temperatures have caused many crank and bearing failures.
** Does not include oil pickup. Must Order Separately **
Use Pickup #
18482 with Melling Oil Pump #
M84DFeatures:
- For Jet Boats running off of the flywheel end
- Big Block Ford 429 - 460 will fit 4 1/2" stroke with most aluminum rods.
- Finish: Yellow Zinc Plate
- Includes Built In Windage Tray
- Pan Capacity is 10 quarts plus the filter
- Depth: 8-3/4 " Front & 7" Rear of motor
- -12AN drain plug.
![]()
