Dominator Model 12-TD Jet W/ HP Bearing
Dominator Model 12-TD Jet W/ HP Bearing



Availability: Parts Diagram
Product Code: AT-12-TD
Qty:

Description

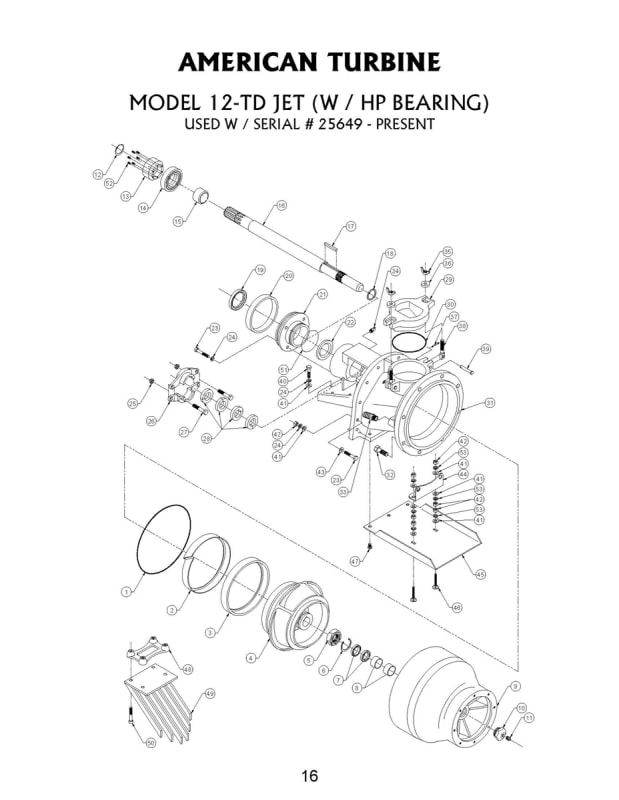

Dominator Model 12-TD Jet Drive with the HP Bearing ( Serial # 25649 to Present)

SYM.DescriptionQTY.Part Number
(1)Bowl O-Ring1# O3101
(2)Wear Ring Liner1# WR6004
(3)Wear Ring Bronze
1# WR5000
(3)Wear Ring Stainless Steel
1# WR5000SS
(4)Impeller1# IMA***
(5)Impeller Nut1# SH3507
(6)Bowl Snap Ring1# SC9201
(7)Bowl Seal2# SL2003
(8)Bowl Bearing2# B1502
(9)Bowl1# SCA9301
(10)Bowl Plug With Zert
1# SCA9001
(11)Zert1# SC8901
(12)
Snap Ring1# SH1507
(13)Bearing Pre-Load Seal Ring1# SH5005
(14)Thrust Bearing1# B1107
(15)Slinger Ring1# SH2507
(16)Pump Shaft1# SH1107
(17)Impeller Key1# SH3007
(18)Shim Kit1# SHK4007
(19)Bearing Cap Seal1# SL1001
(20)Engine Mount Ring1# SC4007
(21)Bearing Cap1# SC2107
(22)Suction Seal1# SL1507
(23)HHCS, 5/16-18 X 2" Bolt
14# F05 18 16 HH
(24)Lock Washer, 5/16"20# F05 LW
(25)Lock Nut, 3/8-24 (THIN)2# F06 24 TL
(26)Packing Follower (PAIR)1# SC2507
(27)HHCS, 3/8-24 X 2" Bolt
2# F06 24 16 HH
(28)Packing Ring4# SC3007
(29)Hand Hole Cover1# SC1701
(30)Hand Hole O-Ring1# O1002
(31)Suction Piece1
# SC1403
(32)HHCS, 1/2-13 X 1-1/2" Bolts
8# F08 13 12 HH
(33)Barbed Connector, 3/8" Pipe
1# SC4507
(34)Grease Zert1# SC8801
(35)Wing Nut, 3/8-162# F06 16 WN
(36)Thick Washer 3/8"2# F06 TW
(37)Cotter Pin, 1/8 X 1/22F02 04 CP
(38)Eye Bolt, 3/8-162# F06 16 EB
(39)Clevis Pin, 5/16"2# F05 CL
(40)HHCS, 5/16-18 X 1-1/4" Bolts
6# F05 18 10 HH
(41)Flat Washer, 5/16"22# F05 FW
(42)Hex Nut, 5/16-18 16# F05 18 HN
(43)AN Washer, 5/16"10# F05 AN
(44)Ride Plate Bracket1# I7301
(45)Ride Plate1# I6901
(46)FHMS, 5/16-18 X 2" Screws
2# F05 18 16 FH
(47)FHMS, 5/16-18 X 3/4" Screws3# F05 18 06 FH
(48)Grate Back Up1# I4307
(49)Grate1# I4207
(50)SHCS, 5/16-18 X 1-1/4" Bolts
4# F05 18 10 SH
(51)Bearing Cap O-Ring1# O3601
(52)Set Screw, 10-32 X 3/8"6# F03 32 03 SS
(53)Star Lock Washer, 5/166# F05 SW
