Home > Jet Drive Parts > Dominator and American Turbine Replacement Parts > Dominator Model 12-S Jet W/ B1007 Bearing > Dominator Model 12-S Jet W/ B1007 Bearing
	Availability: Parts Diagram Product Code: AT-12-S-B Qty:

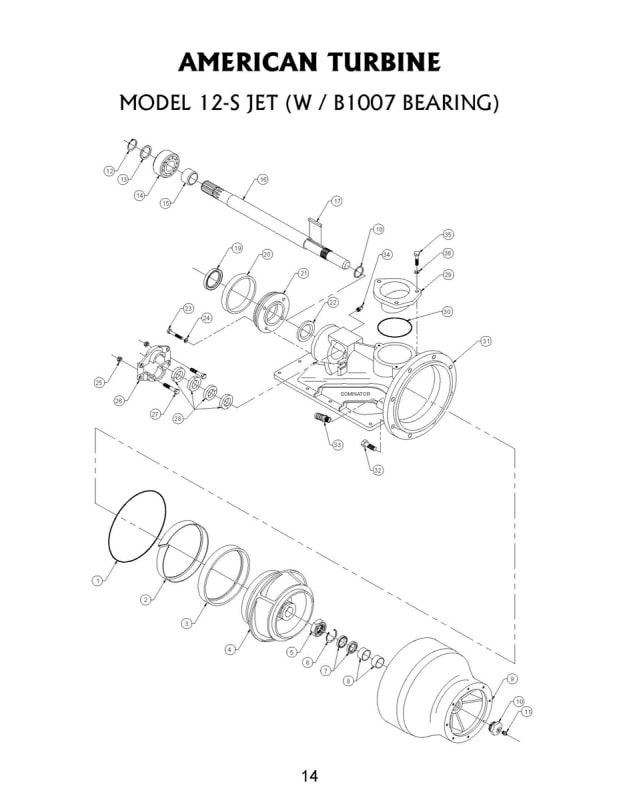

Description   Dominator Model 12-S Jet Drive with the B1007 Bearing (Serial #0 to 25648) SYM. Description QTY, Part Number (1) Bowl O-Ring 1 # O3101 (2) Wear Ring Liner 1 # WR6004 (3) Wear Ring Bronze 1 # WR5000 (3) Wear Ring Stainless Steel 1 # WR5000SS (4) Impeller 1 # IMA*** (5) Impeller Nut 1 # SH3507 (6) Bowl Snap Ring 1 # SC9201 (7) Bowl Seal 2 # SL2003 (8) Bowl Bearing 2 # B1502 (9) Bowl 1 # SCA9301 (10) Bowl Plug with Zert 1 # SC9001 (11) Grease Zert 1 # SC8901 (12) Shaft Snap Ring 1 # SH1507 (13) Thrust Washer 1 # SH2005 (14) Thrust Bearing 1 # B1007 (15) Slinger Ring 1 # SH2507 (16) Pump Shaft 1 # SH1107 (17) Impeller Key 1 # SH3007 (18) Shim Kit 1 # SHK4007 (19) Bearing Cap Seal 1 # SL1007 (20) Engine Mount Ring 1 # SC4007 (21) Bearing Cap 1 # SC2007 (22) Suction Seal 1 # SL1507 (23) HHCS, 5/16-18 X 2" Bolts 4 # F05 18 16 HH (24) Lock Washer, 5/16" 4 # F05 LW (25) Lock Nut, 3/8-24 (THIN) 2 # F06 24 LN (26) Packing Follower (Pair) 1 # SC2507 (27) HHCS, 3/8-24 X 1-2/4" Bolt 2 # F06 24 14 HH (28) Packing Ring 4 # SC3007 (29) Hand Hole Cover 1 # SC1703 (30) Hand Hole Cover O-Ring 1 # O1003 (31) Suction Piece 1 # SC1003 (32) HHCS, 1/2-13 X 1-1/2" Bolt 8 # F08 13 12 HH (33) Barbed Connector, 3/8" 1 # SC8801 (34) Grease Zert 1 # SC8801 (35) HHCS, 5/16-18 X 1-1/4" Bolt 3 # F05 18 10 HH (36) Lock Washer, 5/16" 3 # F05 LW
