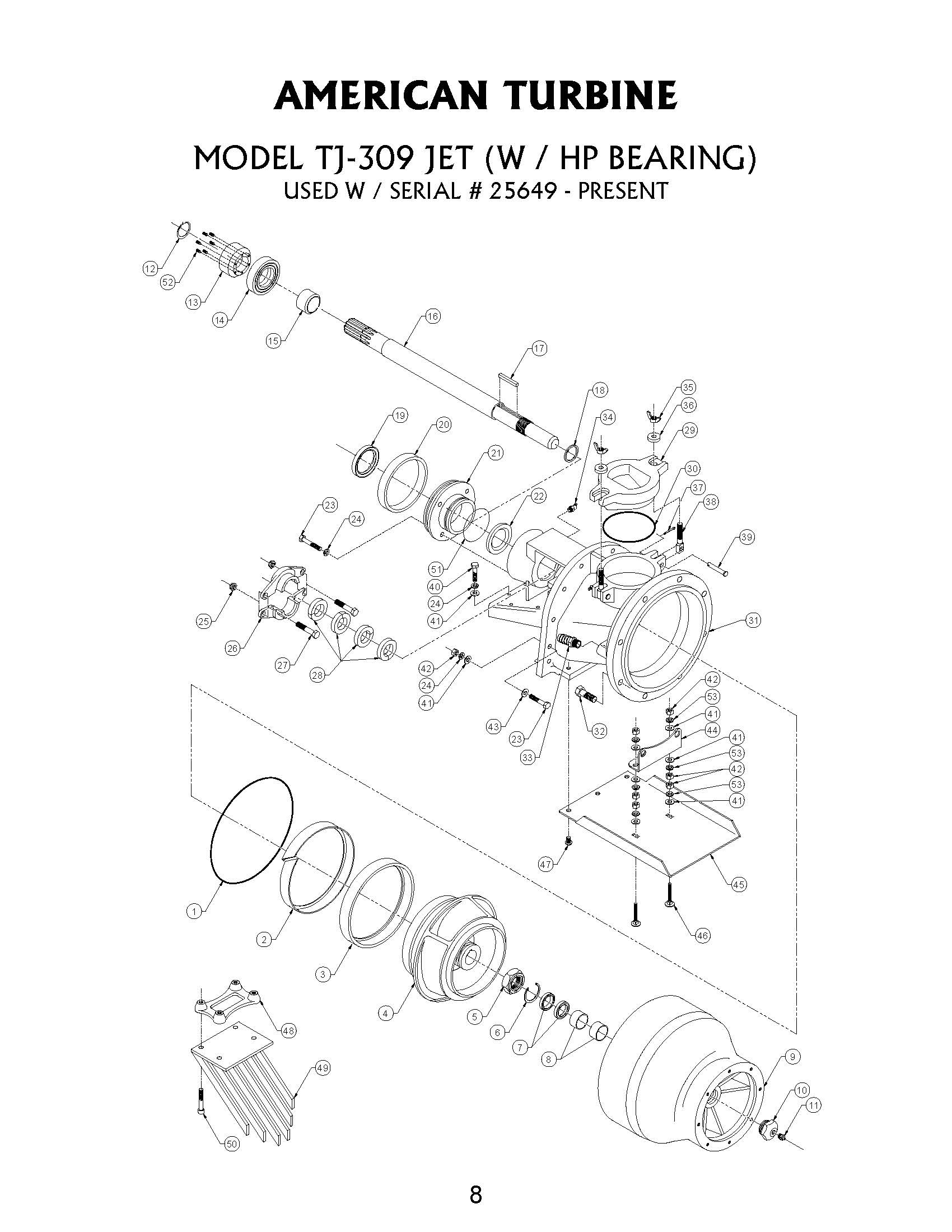

Description   American Turbine Model TJ-309 Jet with the HP Bearing ( Serial # 25649 to Present ) SYM. Description QTY. Part Number (1) Bowl O-Ring 1 # O-3101 (2) Wear Ring Liner 1 # WR6004 (3) Wear Ring Bronze 1 # WR5000 (3) Wear Ring Stainless Steel 1 # WR5000SS (4) Impeller 1 # IMA*** (5) Impeller Nut 1 # SH3507 (6) Bowl Snap Ring 1 # SC9201 (7) Bowl Seal 2 # SL2003 (8) Bowl Bearing 2 # B1502 (9) Bowl 1 # SC9301 (10) Bowl Plug with Zert 1 # SC9001 (11) Zert 1 # SC8901 (12) Snap Ring 1 # SH1507 (13) Bearing Pre-Load Seal Ring 1 # SH5005 (14) Thrust Bearing 1 # B1107 (15) Slinger Ring 1 # SH2507 (16) Pump Shaft 1 # SH1107 (17) Impeller Key 1 # SH3007 (18) Shim Kit 1 # SHK4007 (19) Bearing Cap Seal 1 # SL1001 (20) Engine Mount Ring 1 # SC4007 (21) Bearing Cap 1 # SC2107 (22) Suction Seal 1 # SL1507 (23) HHCS, 5/16-18 X 2" Bolt 14 # F05 18 16 HH (24) Lockwasher, 5/16 20 # F05 LW (25) Lock Nut, 3/8-24 (THIN) 2 F06 24 TL (26) Packing Follower (PAIR) 1 # SC2507 (27) HHCS, 3/8-24 X 2" Bolt 2 # F06 24 16 HH (28) Packing Ring 4 # SC3007 (29) Hand Hole Cover 1 # SC1701 (30) Hand Hole Cover O-Ring 1 # O1002 (31) Suction Piece 1 # SC1403 (32) HHCS, 1/2-13 X 1-1/2" Bolt 8 # F08 13 12 HH (33) Barbed Connector, 3/8" NPT 1 # SC4507 (34) Grease Zert 1 # SC8801 (35) Wingnut, 3/8-16 2 # F06 16 WN (36) Thick Washer, 3/8 2 # F06 TW (37) Cotter Pin, 1/8 X 1/2" 2 # F02 04 CP (38) Eye Bolt, 3/8-16 2 # F06 16 EB (39) Clevis Pin, 5/16" 2 # F05 CL (40) HHCS, 5/16-18 X 1-1/4" Bolt 2 # F05 18 10 HH (41) Flat Washer, 5/16" 22 # F05 FW (42) Hex Nut, 5/16" 16 # F05 HN (43) An Washer 5/16" 10 # F05 AN (44) Ride plate Bracket 1 # 17301 (45) Ride Plate 1 # 16901 (46) FHMS, 5/16-18 X 2" Screw 2 # F05 18 16 FH (47) FHMS, 5/16-18 X 3/4" Screw 3 # F05 18 06 FH (48) Grate Back-Up 1 # 14307 (49) Grate 1 # 14207 (50) SHCS, 5/16-18 X 1-1/4" Bolt 4 # F05 18 10 SH (51) Bearing Cap O-Ring 1 # O3601 (52) Set Screw, 10-32 X 3/8" 6 F03 32 03 SS (53) Star Lock Washer, 5/16 6 # F05 SW
