2-5/8" Fuel Level, 240-33 Ω, Air-Core, Marine White

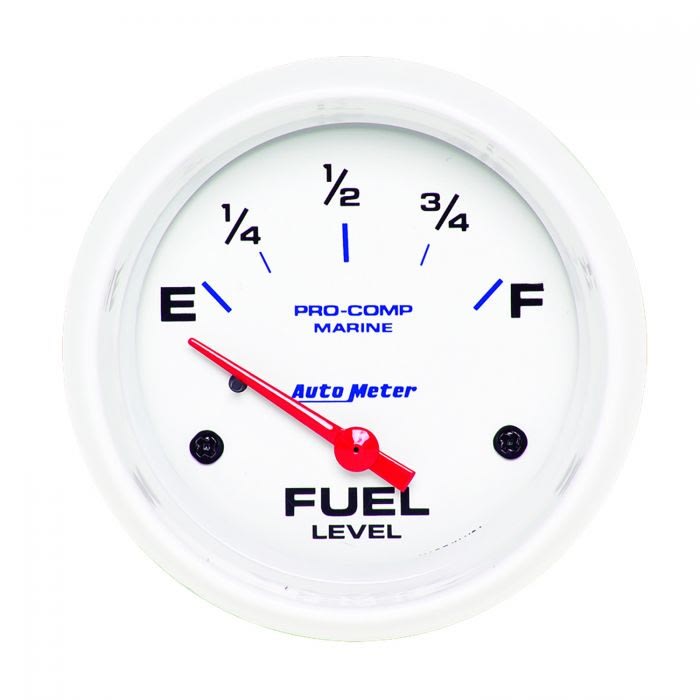

Auto Meter 200761 Fuel Level White Gauge
Our Price: $74.33

Stock Status: In Stock

Availability: Usually Ships in 24 Hours
Product Code: AM-200761

Description Technical Specs
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

  • Front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter sending unit 990345 or equivalent 240 Ohms Empty / 33 Ohms Fuel fuel level sender
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Ships With Part # 2226 Gauge Mount
