Cavitation Plate Hardware
>
7/16" Stainless Turnbuckles & Replacement Parts
Sort By:
Page of 1

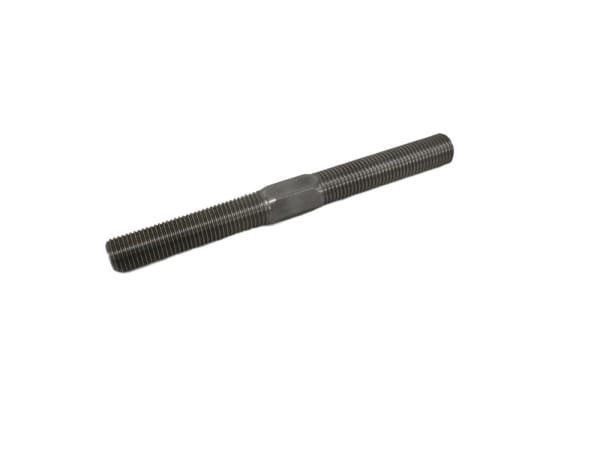

7/16 X 20 Turnbuckle Rod Only 5/8"
7/16 X 20 Turnbuckle Rod Only 5/8"
Our Price: $15.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 79 Turnbuckle

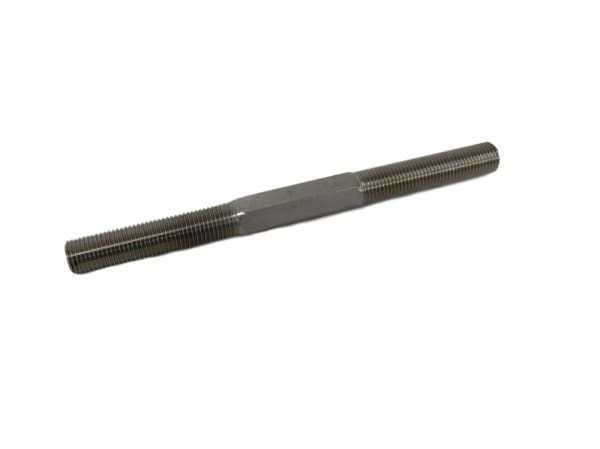

7/16 X 20 Turnbuckle Rod Only 1-5/8"
7/16 X 20 Turnbuckle Rod Only 1-5/8"
Our Price: $16.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 80 Turnbuckle

7/16 X 20 Turnbuckle Rod Only 2-5/8"
7/16 X 20 Turnbuckle Rod Only 2-5/8"
Our Price: $17.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 81 Turnbuckle

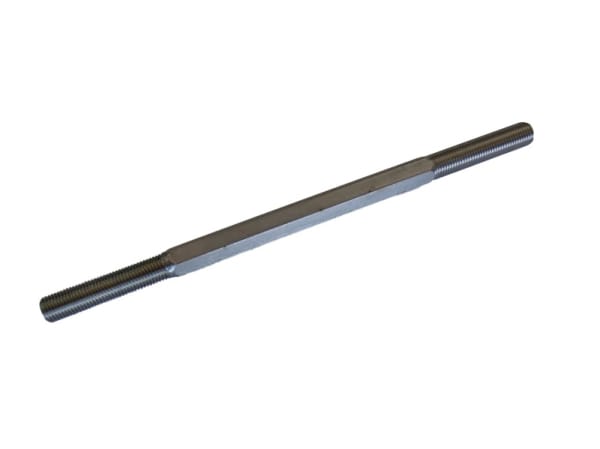

7/16 X 20 Turnbuckle Rod Only 3-5/8"
7/16 X 20 Turnbuckle Rod Only 3-5/8"
Our Price: $18.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 82 Turnbuckle

....
7/16 X 20 Turnbuckle Rod Only 4-5/8"
7/16 X 20 Turnbuckle Rod Only 4-5/8"
Our Price: $19.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 83 Turnbuckle

....
7/16 X 20 Turnbuckle Rod Only 5-5/8"
7/16 X 20 Turnbuckle Rod Only 5-5/8"
Our Price: $20.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 84 Turnbuckle

....
7/16 X 20 Turnbuckle Rod Only 6-5/8"
7/16 X 20 Turnbuckle Rod Only 6-5/8"
Our Price: $21.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 85 Turnbuckle

....
7/16 X 20 Turnbuckle Rod Only 7-5/8"
7/16 X 20 Turnbuckle Rod Only 7-5/8"
Our Price: $22.25

These are replacement Stainless Steel Hex centers for the 7/16" X 20 thread turnbuckles

Measurement is of the Hex portion in the center.
Each rod has an additional 2 inches of thread on each side
Right hand threads on one side, Left hand threads on the other side
This Center coincides with the # 86 Turnbuckle

7/16" - 20 RH Turnbuckle End Clevis Only S.S.
7/16" - 20 RH Turnbuckle End Clevis Only S.S.
Our Price: $23.25

Replacement Turnbuckle End for the Glenwood 7/16" Turnbuckles

Material: Stainless Steel
Turnbuckle Size: 7/16" X 20 RH
Pin size" 3/8"
Overall Length: 3"

...

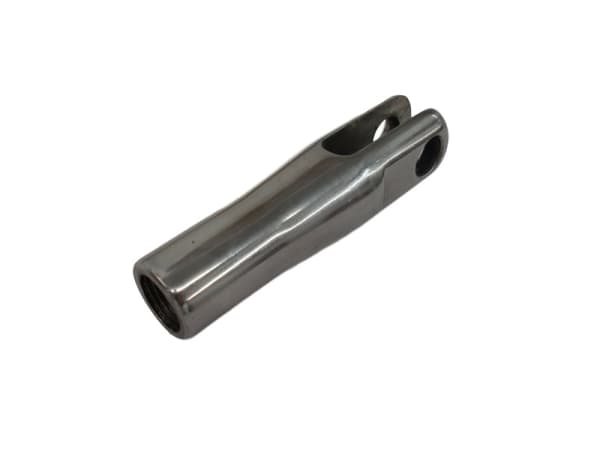

7/16" - 20 LH Turnbuckle End Clevis Only S.S.
7/16" - 20 LH Turnbuckle End Clevis Only S.S.
Our Price: $23.25

Replacement Turnbuckle End for the Glenwood 7/16" Turnbuckles

Material: Stainless Steel
Turnbuckle Size: 7/16" X 20 LH
Pin size" 3/8"
Overall Length: 3"

...
7/16" Stainless Steel Turnbuckle - 6-3/4 to 8-3/4
7/16" Stainless Steel Turnbuckle - 6-3/4 to 8-3/4
Our Price: $66.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 6-3/4 to 8-3/4
Pin Size: 3/8"

....
7/16 Stainless Steel Turnbuckle - 7-3/4 to 9-3/4
7/16" Stainless Steel Turnbuckle - 7-3/4 to 9-3/4
Our Price: $67.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 7-3/4 to 9-3/4
Pin Size: 3/8"

....
7/16" Stainless Steel Turnbuckle - 8-3/4 to 10-3/4
7/16" Stainless Steel Turnbuckle - 8-3/4 to 10-3/4
Our Price: $68.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 8-3/4 to 10-3/4
Pin Size: 3/8"

....
7/16" Stainless Steel Turnbuckle - 9-3/4 to 11-3/4
7/16" Stainless Steel Turnbuckle - 9-3/4 to 11-3/4
Our Price: $69.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 9-3/4 to 11-3/4
Pin Size: 3/8"

....

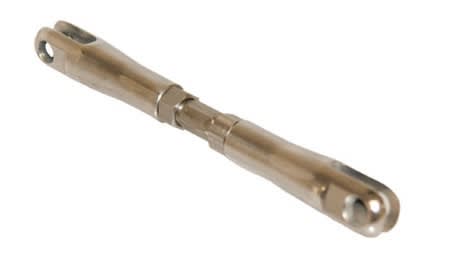

7/16" Stainless Steel Turnbuckle - 10-3/4 to 12-3/4
7/16" Stainless Steel Turnbuckle - 10-3/4 to 12-3/4
Our Price: $70.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 10-3/4 to 12-3/4
Pin Size: 3/8"

....
7/16" Stainless Steel Turnbuckle - 12-3/4 to 14-3/4
7/16" Stainless Steel Turnbuckle - 12-3/4 to 14-3/4
Our Price: $72.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 12-3/4 to 14-3/4
Pin Size: 3/8"

....
7/16" Stainless Steel Turnbuckle - 13-3/4 to 15-3/4
7/16" Stainless Steel Turnbuckle - 13-3/4 to 15-3/4
Our Price: $73.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

**SPECIAL ORDER**

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 13-3/4 to 15-3/4
Pin Size: 3/8"

....
7/16" Stainless Steel Turnbuckle - 14-3/4 to 16-3/4
7/16" Stainless Steel Turnbuckle - 14-3/4 to 16-3/4
Our Price: $74.50

Stainless Steel Turnbuckles for 3/8" plate bosses. Easy adjustment and double locking nuts

**SPECIAL ORDER**

Sizes are Minimum Eye to Maximum Eye measurement

Material: Stainless Steel
Thread Size: 7/16-20
Eye to Eye: 14-3/4 to 16-3/4
Pin Size: 3/8"

....
