Cavitation Plate Hardware
1/2" Stainless Turnbuckles & Replacement Parts
7/16" Stainless Turnbuckles & Replacement Parts
Sort By:
Page of 1

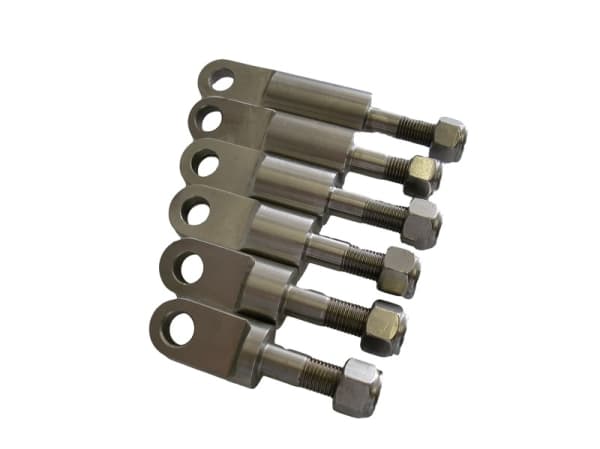

S.S. Cavitation Control Lever
S.S. Cavitation Control Lever

Cavitation Control Levers fit between you cavitation shaft and turnbuckles. Come in different lengths depending on the application
These are great replacements for the ones that break

Most sizes are in stock. The 1/8" sizes are special order

Machined from Stainless Steel
Measurement taken from end of lever to center of hole
Diameter: 3/4"

....
Stainless Ring Only
Stainless Ring Only
Our Price: $0.40

Replacement ring for use on the # GLEN-478 Pin & Rings

...
E Clip Only
E Clip Only
Our Price: $0.55

3/8" Stainless Steel replacement clip only

Fits our 3/8" Stainless Steel Pins

...
Plate Boss Screw
Plate Boss Screw
Our Price: $0.95

Stainless Steel Plate Boss Screw, Undercut to be used for 3/16" plate material

Thread size 5/16X18
Length: 1/2"

...
Stainless Steel Pin & Clips
5/16" Stainless Steel Pin & Clips
Our Price: $1.75

5/16" Stainless Steel Pin and clips for use between the cavitation plate turnbuckle, control arms, and plate bosses.

...
Stainless Steel Pin & Clips
3/8" Stainless Steel Pin & Clips
Our Price: $1.99

3/8" Stainless Steel Pin and clips for use between the cavitation plate turnbuckle, control arms, and plate bosses.

...
Stainless Steel Pin & Ring
3/8" Stainless Steel Pin & Ring
Our Price: $3.60

3/8" Stainless Steel Pin and ring for use between the cavitation plate turnbuckle, control arms, and plate bosses.

...
Stainless Steel Control Arm Bolt
Stainless Steel Control Arm Bolt
Our Price: $4.39

ARP Stainless Steel 12PT 3/8 X 24 X 1' bolts
The weakest link on any cavitation control arm is the bolt! Replace them with ARP Hardened bolts
These gorgeous stainless steel bolts from ARP are rated at 170,000 psi to provide a substantial extra margin of safety over Grade 8 and other hardware

Length: 1"
Material: Stainless Steel
Finish: Polished

...
7/8" Stainless Steel Safety Collar
7/8" Stainless Steel Safety Collar
Our Price: $13.00

Safety collar is made from Stainless Steel and designed for the Cavitation Plate transom bar

I.D.: 7/8"

...
5/16 Plate Boss Chrome Plated Bronze
5/16 Plate Boss Chrome Plated Bronze
Our Price: $18.75

Male Plate Bosses for 5/16" Turnbuckles precision machined and chrome plated bronze.

Manufactured by Glenwood Marine
Base Diameter: 1-3/4"
Turnbuckle Pin Size: 5/16"
Material: Bronze
Finish: Chrome Plated

...
3/8 Plate Boss Chrome Plated Bronze
3/8 Plate Boss Chrome Plated Bronze
Our Price: $18.95

Male Plate Bosses for 3/8" Turnbuckles precision machined and chrome plated bronze.

Manufactured by Glenwood Marine
Material: Bronze
Finish: Chrome Plated

...

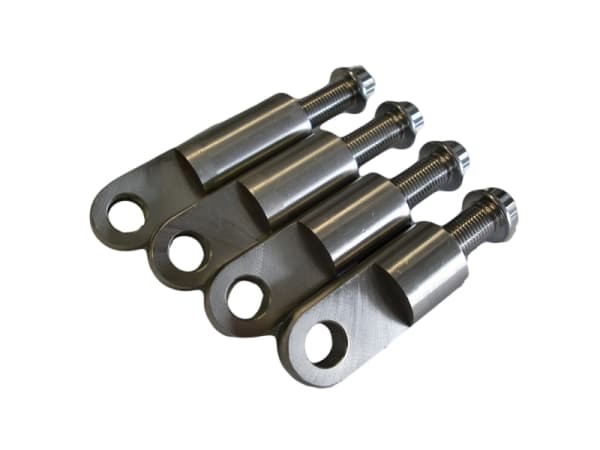

Cavitation Control Lever
Heavy Duty Cavitation Control Lever
Our Price: $26.00

Cavitation Control Levers fit between your cavitation shaft and turnbuckles. Come in different lengths depending on the application
The normal stainless shaft breaks Hi Performance Boats. These come with an ARP hardened bolt to cure that problem
Always use locktite to prevent seizing

Measured from center of hole to bottom
Machined from Stainless Steel
Comes with ARP Stainless Steel Fastener
Measurement taken from end of lever to center of hole

...
7/8" Split Stainless Steel Safety Collar
7/8" Split Stainless Steel Safety Collar
Our Price: $31.00

Our 7/8" Stainless Steel safety collar is good for 7/8" cavitation control shafts or any other use.

Split design makes it easy to install
I.D: 7/8"
Quantity: Sold Individually
Material: Stainless Steel

...
Aluminum Plate Pad Flat Two Bolt
Aluminum Plate Pad Flat Two Bolt
Our Price: $34.00

Polished billet aluminum four bolt Cavitation plate pad.

Accepts a 3/8" diameter pin,
Features a press in stainless steel bushing in the pin area.
3/8 Pin size
2" X 2" Base.
Two taped holes on bottom for mounting

...
Aluminum Plate Pad Flat Four Bolt
Aluminum Plate Pad Flat Four Bolt
Our Price: $36.80

Polished billet aluminum four bolt Cavitation plate pad. Accepts a 3/8" diameter pin,

Features a press in stainless steel bushing in the pin area.
3/8 Pin size
2" X 2" Base
1-1/4" Hole Centers
Polished Finish
Stainless Bushing

...
7/8" Chrome Bronze Transom Block
7/8" Chrome Bronze Transom Block
Our Price: $43.65

Chrome Bronze Cavitation Plate Transom Block.

7/8" Control Shaft
Base width: 1-1/8"
Mounting Holes Center to Center: 2-1/16"
Finish: Chrome Plated
Brass Bushing

...
7/8" Transom Block
7/8" Transom Block
Our Price: $50.00

Polished billet aluminum Cavitation Plate Transom Block.

Center of cavitaion shaft to transom: 2-1/8"
Mounting Holes center to center: 2"
7/8" Control Shaft
Width: 1"
Height: 3"
Finish: Polished Aluminum
Delrin Bushing

...
Aluminum Plate Pad Flat Two Bolt Angled
Aluminum Plate Pad Flat Two Bolt Angled
Our Price: $65.00

Polished billet aluminum two bolt Cavitation plate pad.

Accepts a 3/8" diameter pin,
Features a press in stainless steel bushing in the pin area.
3/8 Pin size
2" X 2" Base.
Two taped holes on bottom for mounting
Custom machined to your bottom angle.
Special Order only
Call with bottom degrees

...
7/8" Cavitation Control Shaft Lever Chrome
7/8" Cavitation Control Shaft Lever Chrome
Our Price: $75.50

Cast from 70,000 Manganese Bronze and then chrome plated. Precision machined for a 7/8" Diameter control shaft
Includes stainless clevis for a 1/2" control rod

Center to Center: 5.250 inches
Material: Bronze
Finish: Chrome Plated
Hole Size: 7/8"
Keyway size: 3/16"


....
7/8" Control Arm
7/8" Control Arm Billet Aluminum
Our Price: $100.00

Polished billet aluminum Cavitation Plate control arm.

7 1/2" Overall length, 5 1/4" center to center.
7/8" Control Shaft
1" Wide
3/16th key way slot
Polished Finish

...
1" Control Arm
1" Control Arm Billet Aluminum
Our Price: $100.00

Polished billet aluminum Cavitation Plate control arm.

7 1/2" Overall length,
5 1/4" center to center.
1" Control Shaft 1" Wide 1/4" key way slot
Polished Finish

...
7/8 Cavitation Control Shaft
7/8 Cavitation Control Shaft Stainless Steel
Our Price: $235.00

Our 7/8 diameter cavitation control shaft is drilled and spot faced to receive our 3/4" diameter stainless steel control arms.

Machined from 7/8" Stainless Steel

Send in your diagram to facilitate drilling and spot facing
Specify 3/16" or 1/4" Keyway
Specify overall length
Specify from center to each control arm hole
Specify from center to center of keyway

...
